24 Inch 4K/ 2K UHD Medical Grade Monitor

  • Medical Grade for 24/7 applications

  • High Performance UHD video board for reading Medical scans; MRI, X-Ray, CT, CAT & Ultrasound

  • Polished glass helps with image clarity, protects the LCD and allows for full wipe down (Infection Control)

  • High brightness 450 CD/m² with 3000:1 Contrast

  • Multi-Dual Resolutions: 3840 x 2160 4K Ultra High Definition & 2K Full HD 1920 x 1080

  • 3-Year Warranty with Advanced Replacement

  • Operating Systems: Windows, OS X, Linux & Android

  • Color Options: Black or White


Get Pricing

Customers also viewed

27″ 4K UHD MD Monitor
24″ 4K UHD Touch Screen
27″ 4K UHD Touch Screen

Medical Grade:

Advanced UHD 4K monitor built for the harshest healthcare conditions. Ultra-high definition LCDs have 8 million pixels. That’s 6 million more pixels than Full HD. That means you are able to detect and see more from your scans. See more! Save more lives!

Cold Rolled Steel:

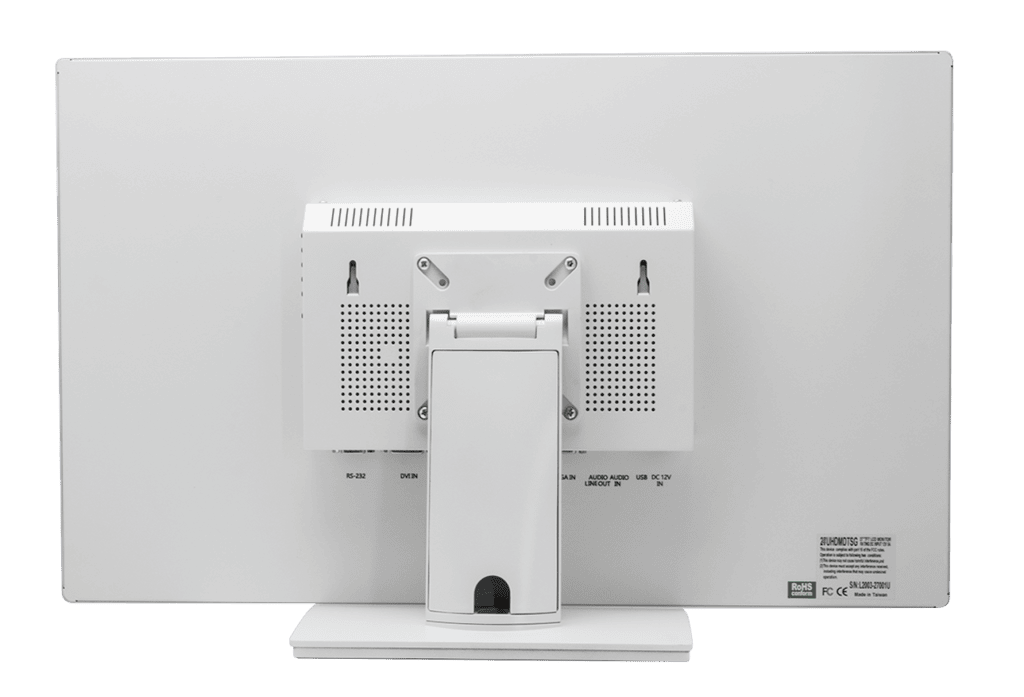

Rear metal housing made with cold rolled steel, protects the electronics for harsh industrial and healthcare environments. Allows for full wipe down for infection control. Rear housing VESA mount accommodates 100x100mm for versatile mounting.

All the inputs you need:

An array of inputs to choose from for all your applications and project needs. We’ve got you covered!

LCD Performance

  • Medical Grade ADS-IPS LCD Panel
  • Modern Advanced Cooling Design
  • Durable White Rear Housing
  • Commercial Warranty 3 Years with advanced replacement
  • (MTBF) 80,000 Hours
  • VESA compliant

Medical Grade ADS-IPS LCD Panel

  • High-Performance color accuracy with no shift
  • Best gray inversion of any IPS panel
  • High-Contrast ratio
  • High Transmittance
  • Low power consumption


Spec Sheet
Mechanical Drawing
User Manual
LCD Panel Medical Grade ADS-IPS with LED Back-Light
Viewable Image Size 23.8″/16:9
Native Resolution 4K UHD 3840 x 2160 @ 60 Hz/ 2K FHD 1920 X 1080
Contrast Ratio 3000:1
Brightness 450 cd/m2
Viewing Angle 178° Vert., 178° Hor.
(MTBF) 80,000 Hours
Pixel Pitch 0.137mm
Response Time  (G/G) 14 ms
Input Connections DisplayPort, 2 HDMIs, DVI, VGA & RS232
Earphone Out 3.5mm
Audi-In RCA L/R
Internal Speakers Built-in 2 watt speakers
Power AC 100-240V 50/60Hz, DC 12V/5A
Dimensions (WxHxD) (with stand) 21.9in x 13.4in x 8.4 in.
Dimensions (WxHxD) (without stand) 21.9in x 13.4in x 2.9 in.
Weight 14 lbs.
VESA Specification  100 x 100mm
Warranty 3 Years (advanced exchange)
