$2,899.00
  • True 4K UHD (3840 × 2160) resolution shows realistic course textures
  • 4,000 ANSI lumens for bright, vivid performance in any lighting
  • Short Throw (0.69–0.83) fills a 14 ft. screen from close range
  • Auto Screen Fit for quick, perfect alignment every time
  • Dust-proof design with long-lasting laser light source for easy maintenance
BenQ AK700ST Short-Throw 4K 4000 Lumens Laser Projector
- +

The BenQ LK936ST projector delivers bright, detailed 4K HDR projection powered by a 5,100-lumen laser light source, producing vivid, high-contrast visuals ideal for simulator impact screens. Its 0.8 short-throw ratio and 1.1x zoom make it easy to achieve large, accurate images in compact rooms, while onboard processing maintains crisp edges and color uniformity across the entire display.

Designed for low-maintenance performance, the sealed laser engine extends long-term reliability, and reduced input lag supports more natural swing feedback. The LK936ST is a top choice for premium golf simulator builds requiring brightness, precision, and installation flexibility.

For a complete setup, pair it with our Ultra-Series 4K touch monitors (27″, 32″, 43″, 55″) that match the same 3840 × 2160 resolution for seamless integration.

Inputs

Video:
2 × HDMI 2.0b; 1 × USB-C (DisplayPort with PD out 5V/1A)
USB:
2 × USB Type-A 2.0
Audio:
1 × 3.5mm
Speakers:
Built-in 10W speaker
RS-232:
1 × DB-9
HDMI Audio Return:
eARC, 7.1 channel

Input connections

HDMI In:
2 × HDMI 2.0 (Audio/Video Input)
USB-C:
1 × USB-C (Audio, Power, Video Input/Output)
USB-A Power:
1 × USB-A (Power Output)
USB-A LAN:
1 × USB-A (LAN Input)
Audio Out:
1 × 3.5 mm Mini
RS-232:
1 × DE-9/DB-9 (Control Input)
HDCP Support:
Yes, Version 2.2
Media/Memory Card Slot:
No

Power

Input Power:
100 – 240 VAC, 50/60 Hz
Power Consumption:
{"Full Brightness"=>"320 W", "Standby"=>"< 0.5 W"}

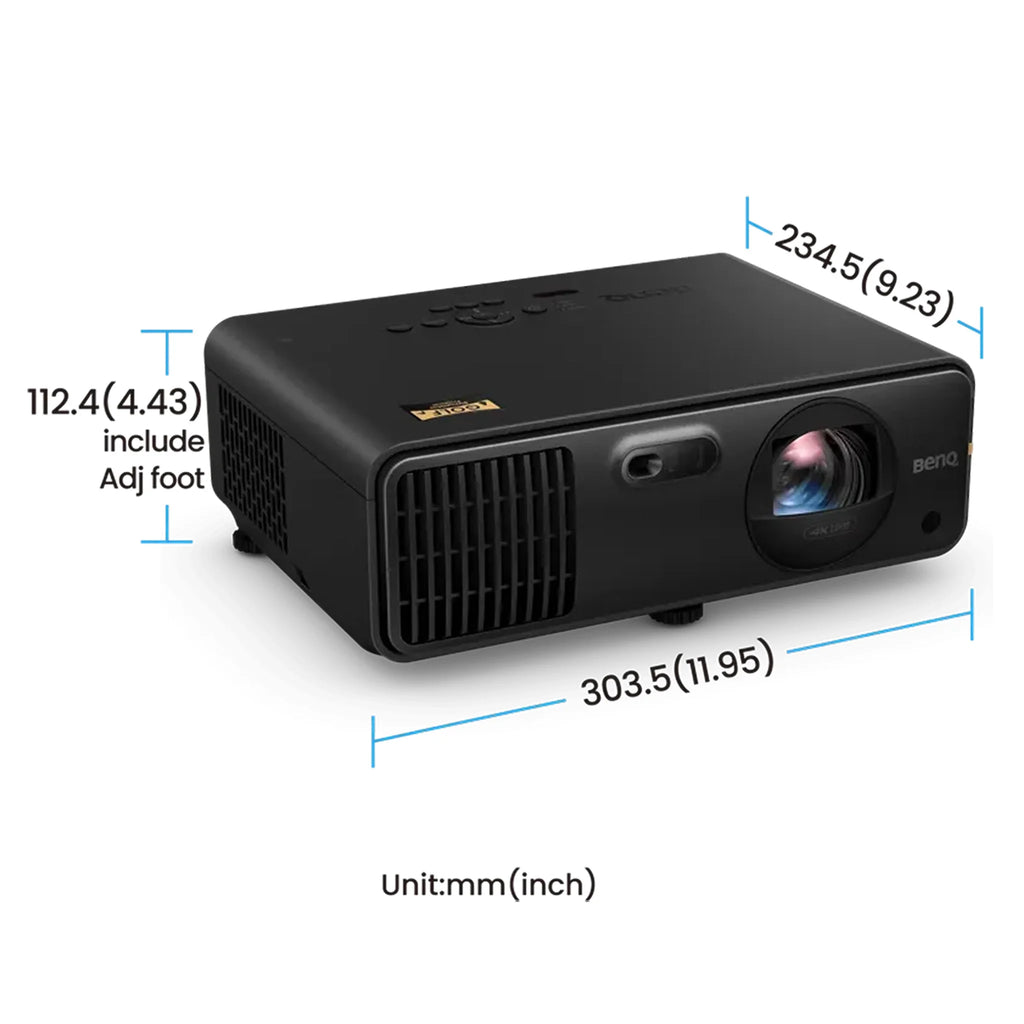

Dimensions weights

Projector Dimensions (W × H × D):
{"inches"=>"11.9 × 4.4 × 9.2″", "millimeters"=>"303.5 × 112.4 × 234.5 mm"}
Projector Weight:
{"pounds"=>"7.3 lb", "kilograms"=>"3.3 kg"}
Package Dimensions (L × W × H):
16.1 × 13.2 × 6.6″
Package Weight:
10.44 lb

Performance

  • 4K UHD resolution enhances surface textures, ball flight definition, and course realism.

  • 4,000-lumen laser output provides high visibility in ambient-light environments.

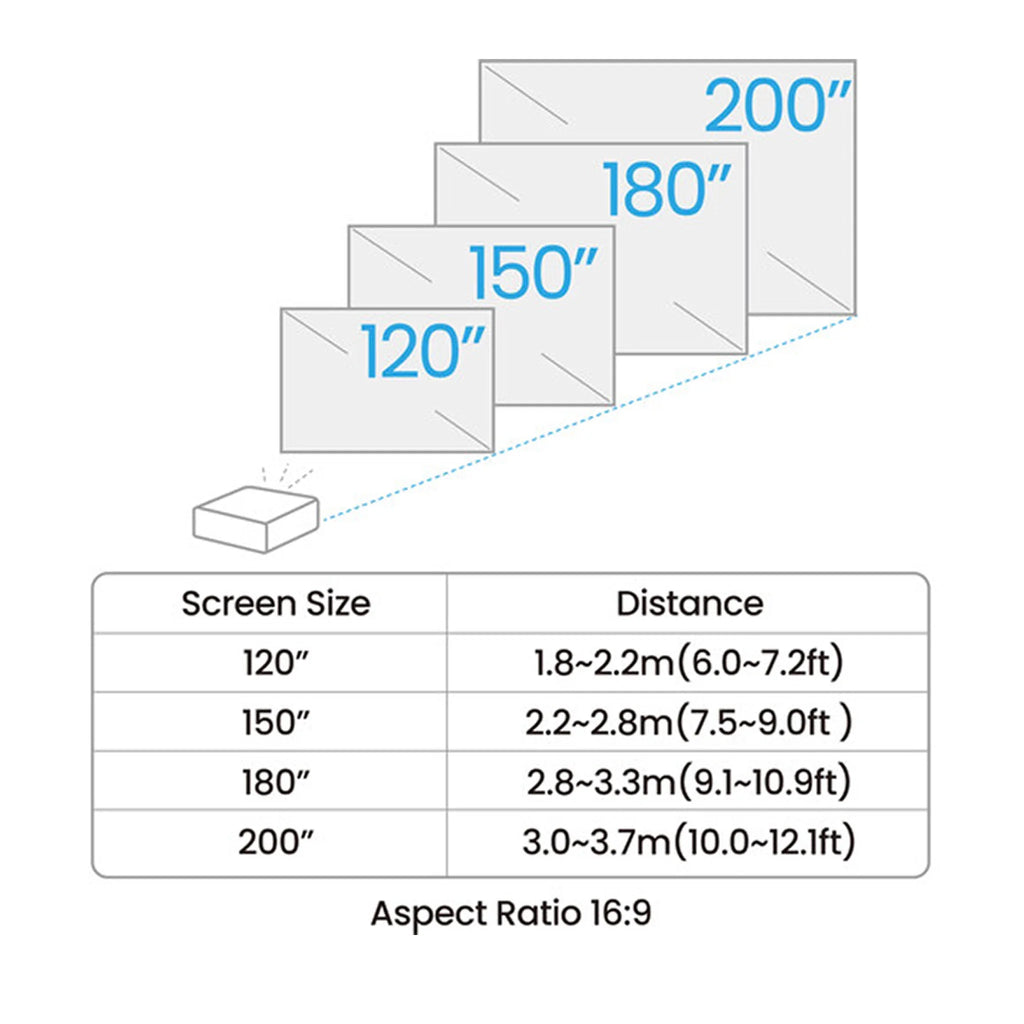

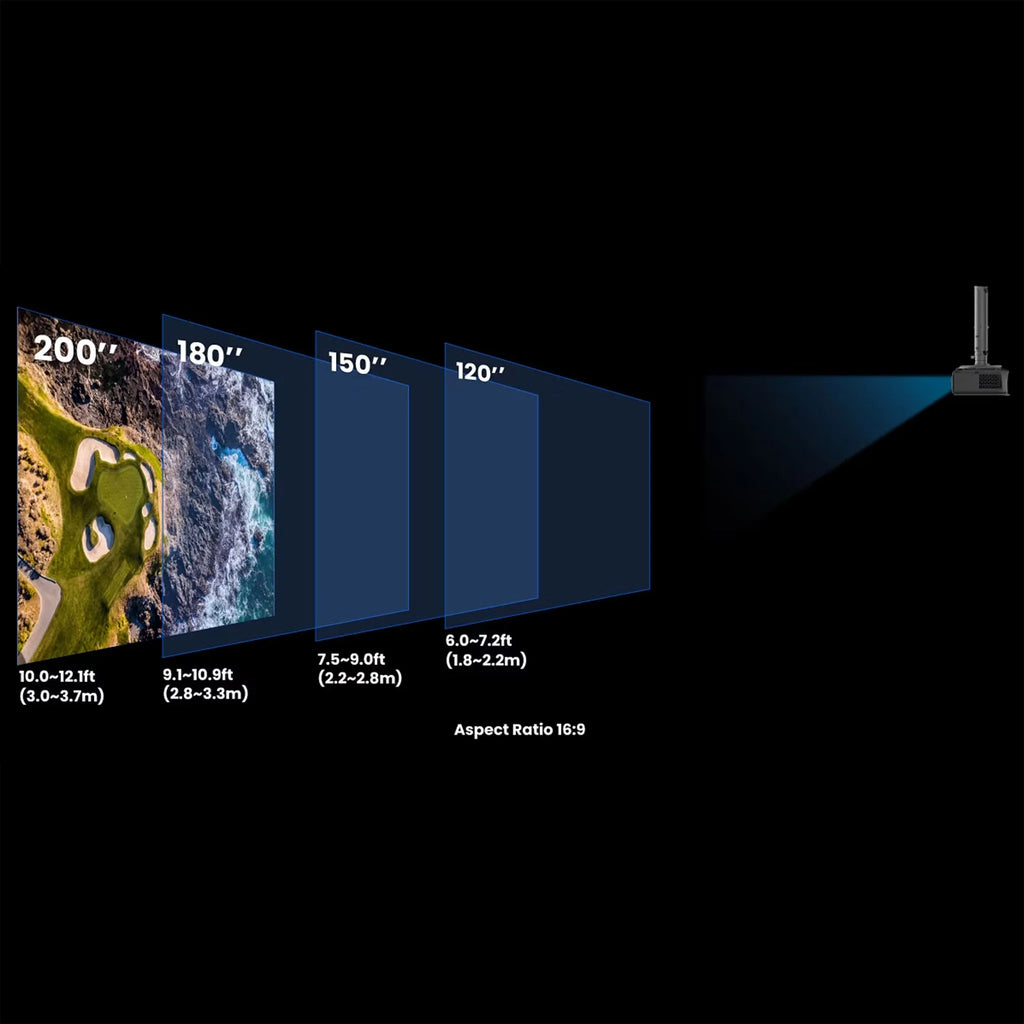

  • 0.69–0.83 short-throw ratio fills large screens in compact simulator rooms.

  • Auto Screen Fit speeds up alignment and corrects geometry for clean edges.

  • Low input latency supports accurate swing feedback and smoother motion rendering.

Features

  • Sealed, dust-resistant laser engine delivers stable brightness over long sessions.

  • Laser illumination eliminates lamp replacements and warm-up times.

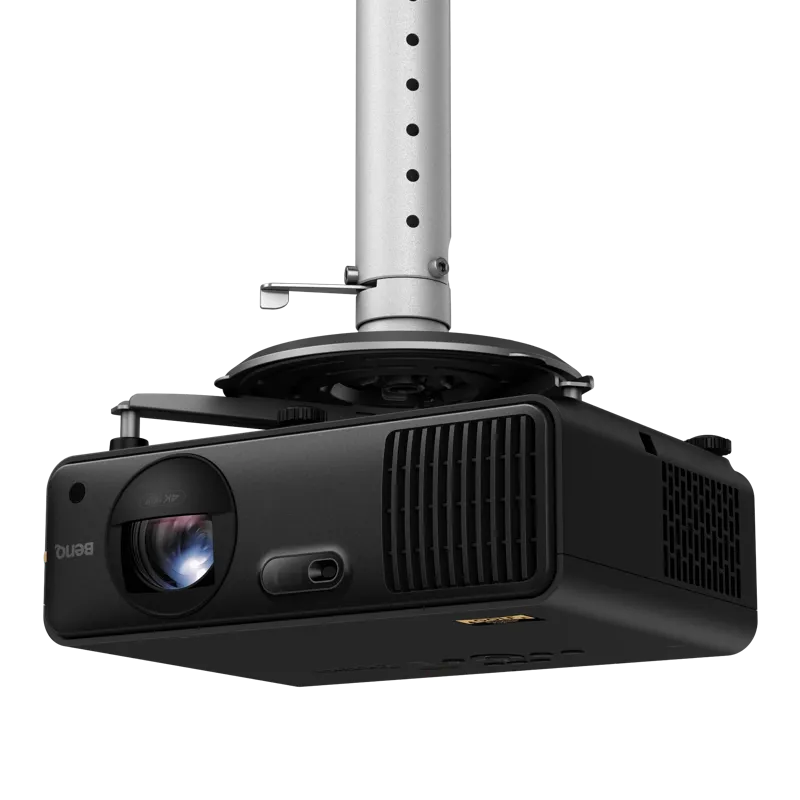

  • Flexible mounting options with short-throw design ideal for home or commercial bays.

  • Quiet operation and uniform color performance elevate overall simulation immersion.

  • Designed for modern golf simulators, training studios, and high-end home setups.
