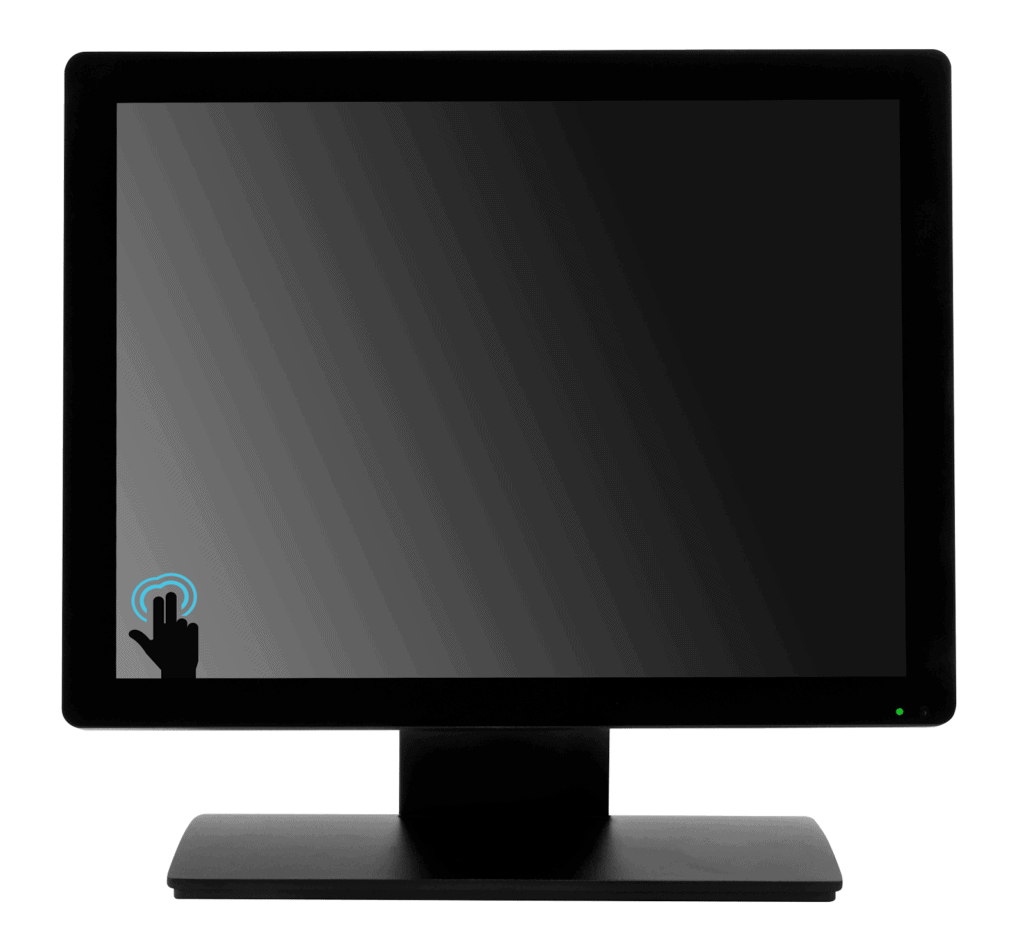

19 Inch Multi-Touch PCAP Touch Screen Monitor

  • Commercial built for 24/7 Applications

  • High Performance PCT 10 Point Multi-Touch

  • 3000:1 Contrast

  • 1280 X 1024 HiDef Resolution

  • 3-Year Warranty with Advanced Replacement

  • Operating Systems: Windows, OS X, Linux & Android

  • PN# 190TSG

Get Pricing
19 Inch Multi-Touch PCAP Touch Screen Monitor

Customers also viewed

15.6″ Touch Screen
22″ Touch Screen
24″ Touch Screen
27″ Touch Screen

High-Performance:

Projected Capacitive Laser Etched ITO, Unlimited touch activations, works with latex, vinyl & nitrile gloves for industrial and medical applications. USB HID plug & play with Windows.

19
19 Inch Multi-Touch PCAP Monitor Rear Housing

Cold Rolled Steel:

Rear metal housing made with cold rolled steel, protects the electronics for harsh industrial and healthcare environments. Allows for full wipe down for infection control. Rear housing VESA mount accommodates 100x100mm for versatile mounting.

All the inputs you need:

An array of inputs to choose from for all your applications and project needs. We’ve got you covered!

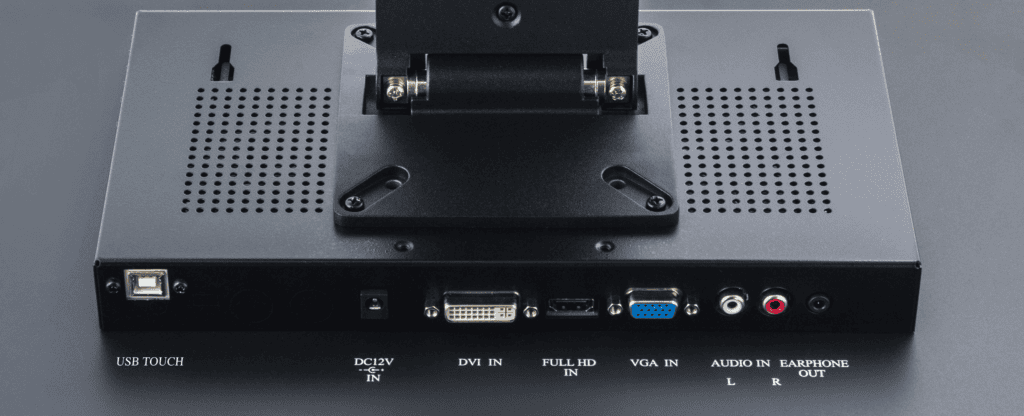

19 Inch Multi-Touch PCAP Touch Screen Monitor Inputs

LCD Performance

  • Commercial VA LCD Panel
  • Modern Advanced Cooling Design
  • Durable Black Rear Housing
  • Commercial Warranty 3 Years with advanced replacement
  • (MTBF) 50,000 Hours
  • VESA compliant

Touch System Performance

  • High-Performance Projected Capacitive with EETI Controller (Unlimited Touch Activations)
  • 10 Point Multi-Touch (Finger, Capacitive Stylus, Nitrile, Latex and Vinyl Gloves)
  • Industry Leading Touch Response 5ms
  • USB HID compliant no calibration (**requires active USB extender if you need an extension longer than provided 6 foot USB cable)
  • Zero-Bezel sealed full glass display

DOWNLOADS

Spec Sheet
Mechanical Drawing
User Manual
LCD Panel Commercial VA with LED Back-Light
Viewable Image Size 19″/5:4
Native Resolution Full HD 1280 x 1024 @ 60 Hz
Contrast Ratio 1000:1
Brightness 250 cd/m2
Viewing Angle 178° Vert., 178° Hor.
(MTBF) 80,000 Hours
Pixel Pitch 0.25mm
Response Time (Tr/Tf) 20/5 ms
Input Connections HDMI, DVI & VGA
Earphone Out 3.5mm
Audi-In RCA L/R
Internal Speakers Built-in 2 watt speakers
Power AC 100-240V 50/60Hz, DC 12V/5A
Dimensions (WxHxD) Net (with stand) TBD
Net (without stand) TBD
Net Weight (with stand) 8 lbs.
VESA Specification 100 x 100mm
Warranty 3 Years (advanced exchange)
