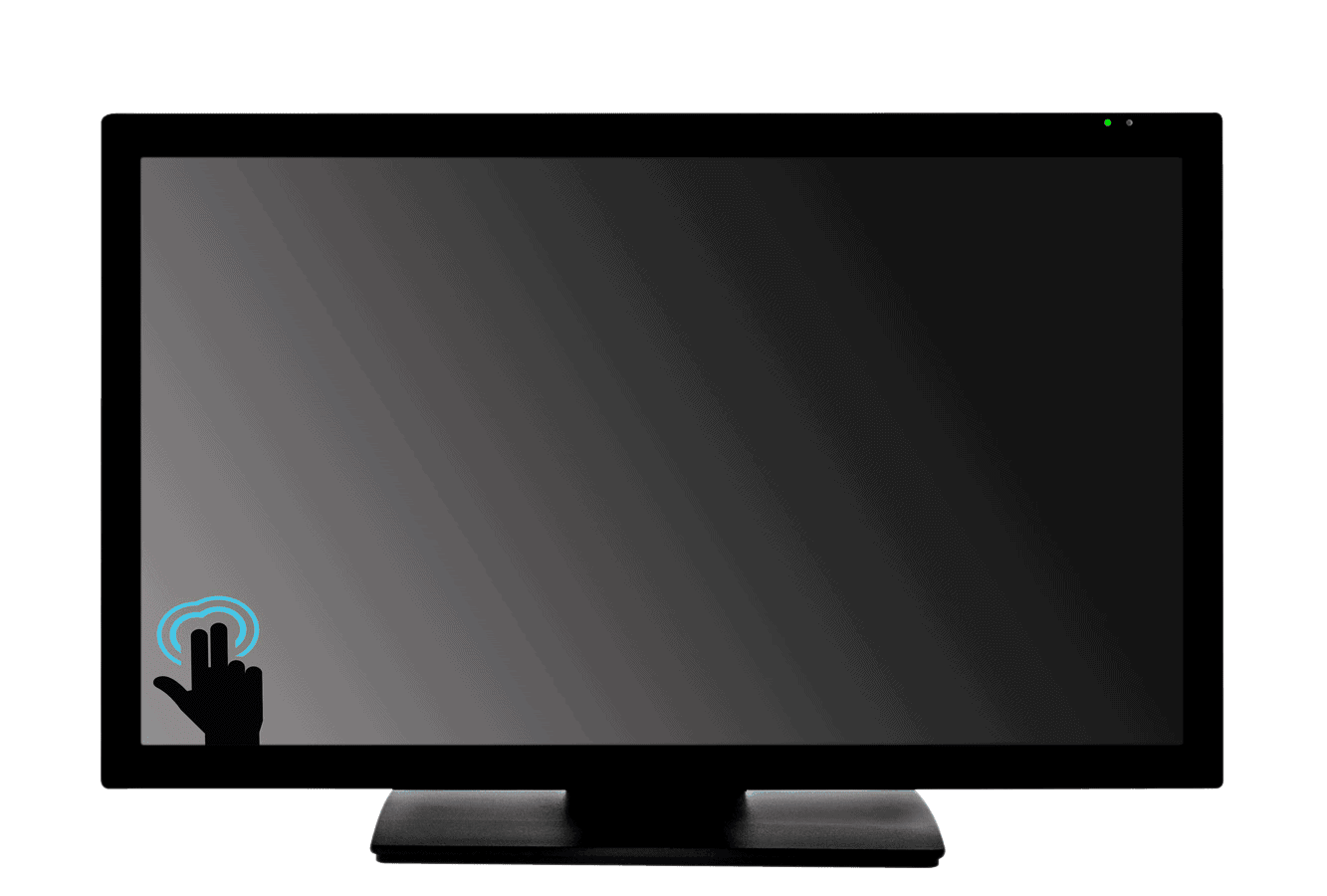

24 Inch Multi-Touch PCAP Touch Screen Monitor

  • Commercial built for 24/7 Applications

  • High Performance PCT 10 Point Multi-Touch

  • Anti-Glare Diffuses Light/ Reduces Fingerprints

  • 3000:1 Contrast

  • 1920 X 1080 Full HiDef Resolution

  • 3-Year Warranty with Advanced Replacement

  • Operating Systems: Windows, OS X, Linux & Android

  • PN# 24TSG

24 Inch 24TSG Commercial Touch Face

High-Performance:

Projected Capacitive Laser Etched ITO, Unlimited touch activations, works with latex, vinyl & nitrile gloves for industrial and medical applications. USB HID plug & play with Windows.

Cold Rolled Steel:

Rear metal housing made with cold rolled steel, protects the electronics for harsh industrial and healthcare environments. Allows for full wipe down for infection control. Rear housing VESA mount accommodates 100x100mm for versatile mounting.

All the inputs you need:

An array of inputs to choose from for all your applications and project needs. We’ve got you covered!

LCD Performance

  • Commercial VA LCD Panel
  • Modern Advanced Cooling Design
  • Durable Black Rear Housing
  • Commercial Warranty 3 Years with advanced replacement
  • (MTBF) 80,000 Hours
  • VESA compliant

Touch System Performance

  • High-Performance Projected Capacitive with EETI Controller (Unlimited Touch Activations)
  • 10 Point Multi-Touch (Finger, Capacitive Stylus, Nitrile, Latex and Vinyl Gloves)
  • Industry Leading Touch Response 5ms
  • USB HID compliant no calibration (**requires active USB extender if you need an extension longer than provided 6 foot USB cable)
  • Anti-Glare Diffuses Light/ Reduces Fingerprints
  • Zero-Bezel sealed full glass display

DOWNLOADS

LCD PanelCommercial VA with LED Back-Light
Viewable Image Size23.8″/16:9
Native ResolutionFull HD 1920 x 1080 @ 60 Hz
Contrast Ratio3000:1
Brightness250 cd/m2
Viewing Angle178° Vert., 178° Hor.
(MTBF)80,000 Hours
Pixel Pitch0.25mm
Pixels Per Inch102 @ native resolution
Response Time(Tr/Tf) 20/5 ms
Input ConnectionsHDMI, DVI & VGA
Earphone Out3.5mm
Audi-InRCA L/R
Internal SpeakersBuilt-in 2 watt speakers
PowerAC 100-240V 50/60Hz, DC 12V/5A
Dimensions (WxHxD) Net (with stand)21.9in x 13.4in x 8.4 in.
Net (without stand)21.9in x 13.4in x 2.9 in.
Net Weight (with stand)14 lbs.
VESA Specification100 x 100mm
Warranty3 Years (advanced exchange)
