Name: 8" High-Bright Rugged Touch Monitor
Brand: Touch Screen Guru
SKU: 08PCT-USBC-TSG
Price: 475.00 USD
Availability: InStock

Description

The 8″ HD 24/7 Touch Monitor delivers high-impact visual performance and precise touch interaction in a highly compact, rugged metal housing. Its 1280 × 720 display outputs an incredible 1200 nits of brightness, ensuring content remains vivid and readable even in direct sunlight. The TRU-Flat zero-bezel IP65 front creates a sealed, edge-to-edge surface built for constant interaction. The 10-point PCAP touch layer, enhanced with optical bonding and anti-glare/anti-fingerprint coatings, responds instantly to fingers, gloves, or styluses.

Designed with simple plug-and-play USB HID-compliance, the monitor integrates easily with USB-C, HDMI, and DisplayPort connections. Engineered for 24/7 operation with a 50,000-hour MTBF and a 3-year commercial warranty, this 8" display performs reliably in kiosks, control panels, retail counters, and demanding industrial environments.

Inputs

Video:

1 × DisplayPort, 1 × HDMI 1.4, 1 × USB-C

USB Touch:

1 x USB B-Type, 1 x USB-C

Audio:

1 × 3.5mm

Speakers:

Built-in 5W speakers

Specifications

Download Spec Sheet

Commercial LCD performance

Screen Size:

8 Inch / 16:9

Brightness (cd/m²):

1200 sunlight-readable

Static Contrast Ratio:

1300:1

Viewing Angle:

178° Vert., 178° Hor.

Backlight/ MTBF:

WLED/ 50,000 Hours

Resolution:

HD 1280x 720 @ 60Hz

Pixels Per Inch:

84 @ native resolution

Response Time:

(Tr/Tf) 20/5 ms

Touch system performance

Zero-Bezel sealed full glass:

TRU-Flat Zero Bezel IP65 rated PCAP

Glass Surface Treatments:

Optical bonding with Anti-Glare & Anti-Fingerprint coatings

Projected Capacitive:

10-Point Multi-Touch compatible with fingers, capacitive styluses, nitrile, latex, and vinyl gloves

Industry Leading Touch Response:

5ms response time

USB HID-Compliant:

Plug & Play functionality with no calibration required

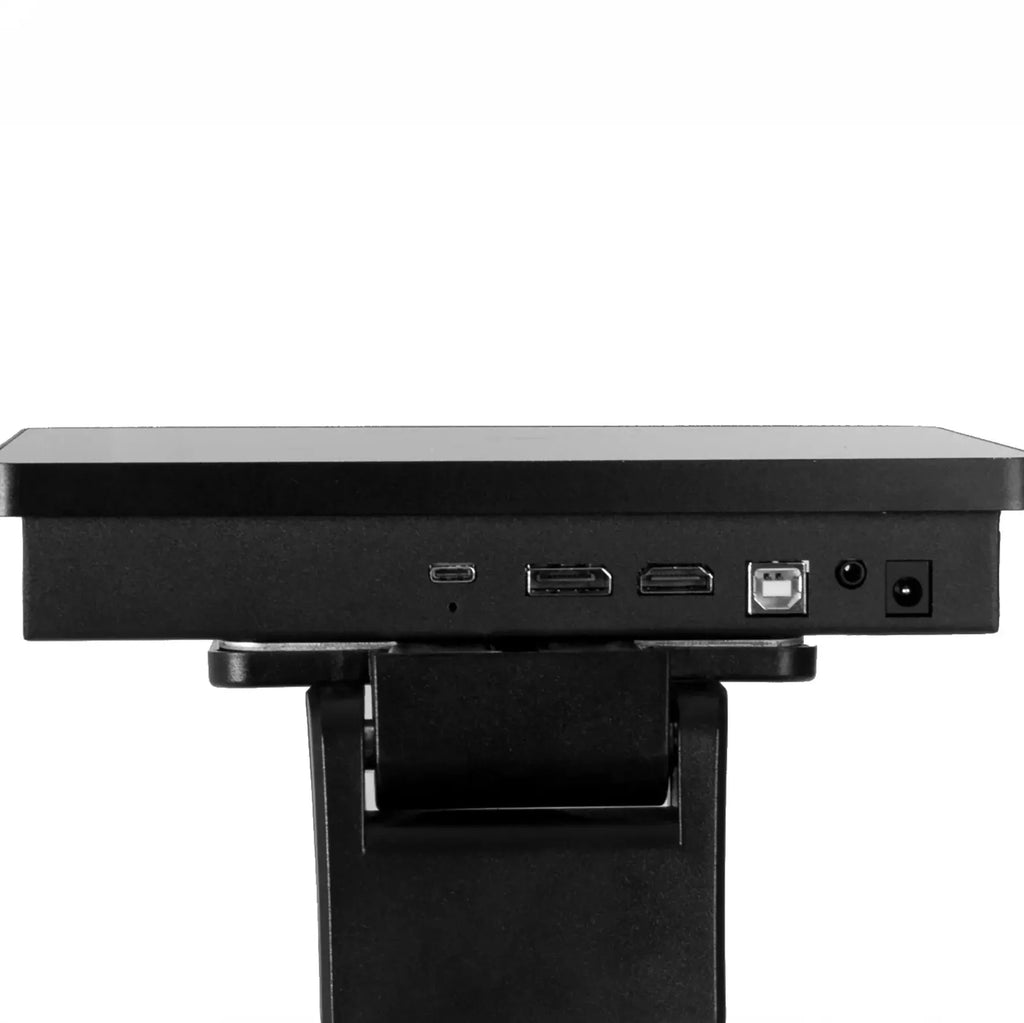

Input connections

Video Out:

1 x DisplayPort, 1 x HDMI 1.4, 1 x USB-C

USB Type C:

1 x USB Type C (PD & CC protocol)

USB Touch:

1 x USB B-Type

Audio In/ Out:

1 x 3.5mm

Mechanical

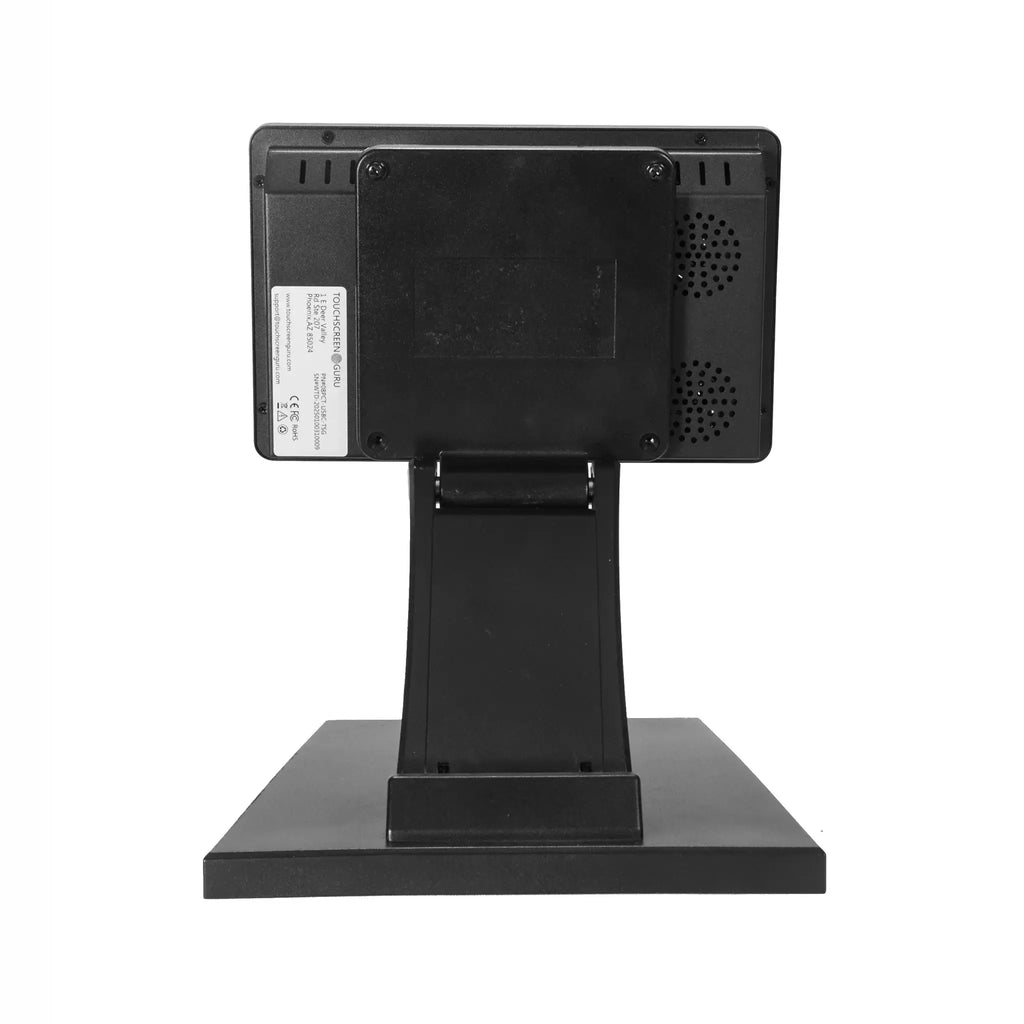

VESA Mounting:

75x75mm & AMPS

IP Rating:

IP65 rated PCAP front

Housing Material:

Rugged Metal Housing

Power

Input Power:

20W AC 100-240V 50/60Hz

Power Supply:

DC 12V/5A

Dimensions weights

Monitor Dimensions (L × W × H):

8.57 in x 5.53in x 1.37 in.

Monitor Weight:

2.3 lbs.

What's in the Box

Whats in the box

Hardware Included:

1x Touch Monitor, 1x Power Supply

Mounting Hardware:

N/A

Assembly Required:

No (Stand NOT Included)

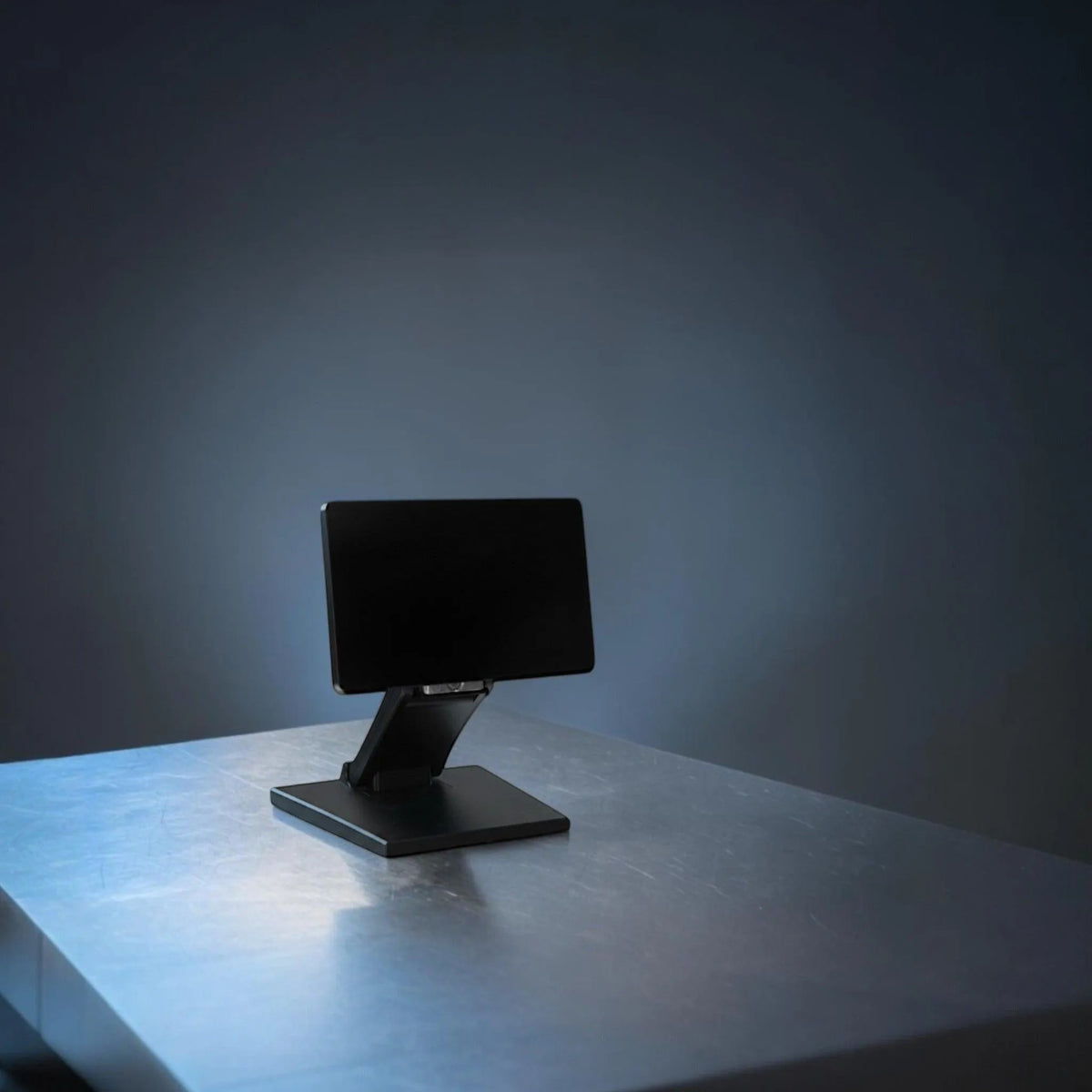

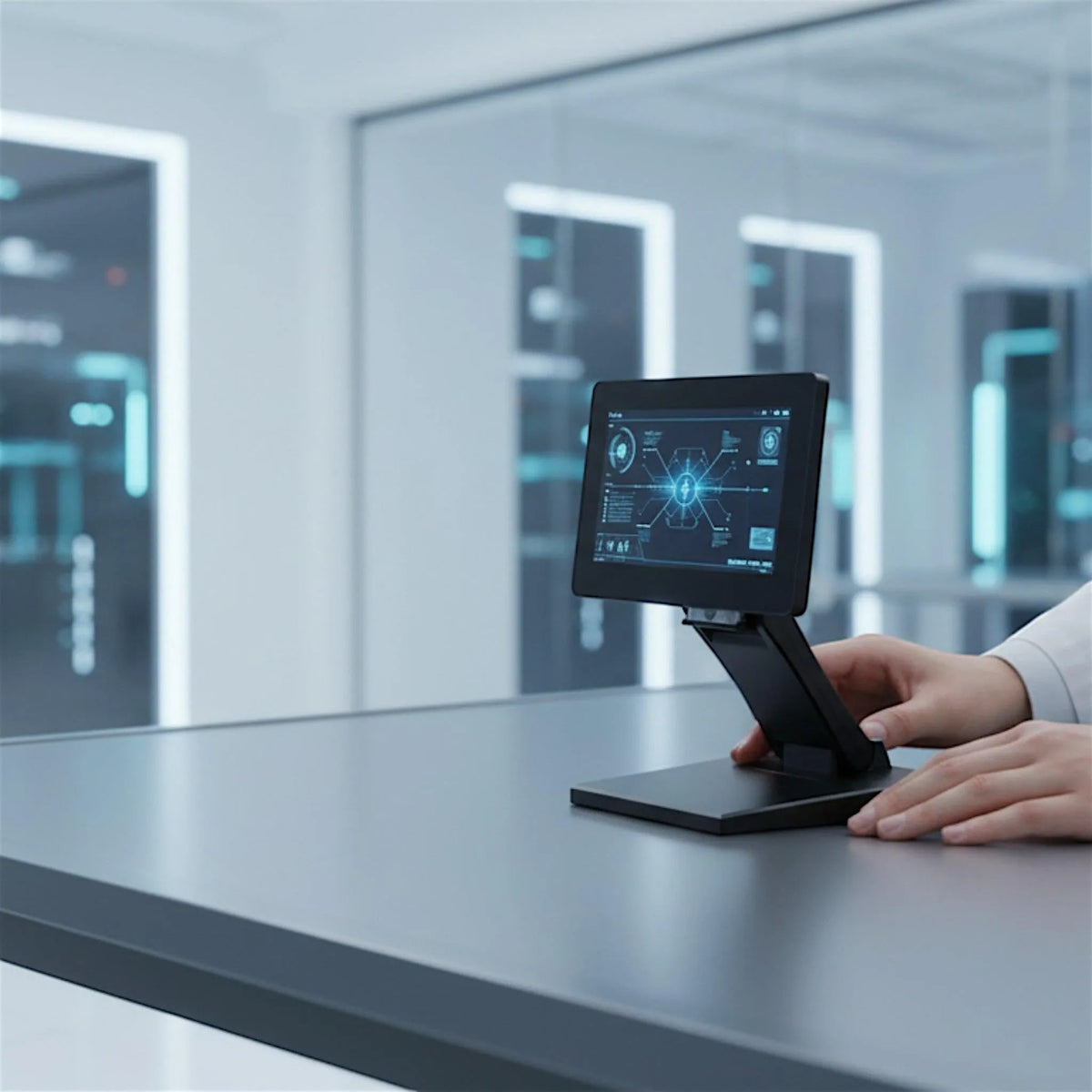

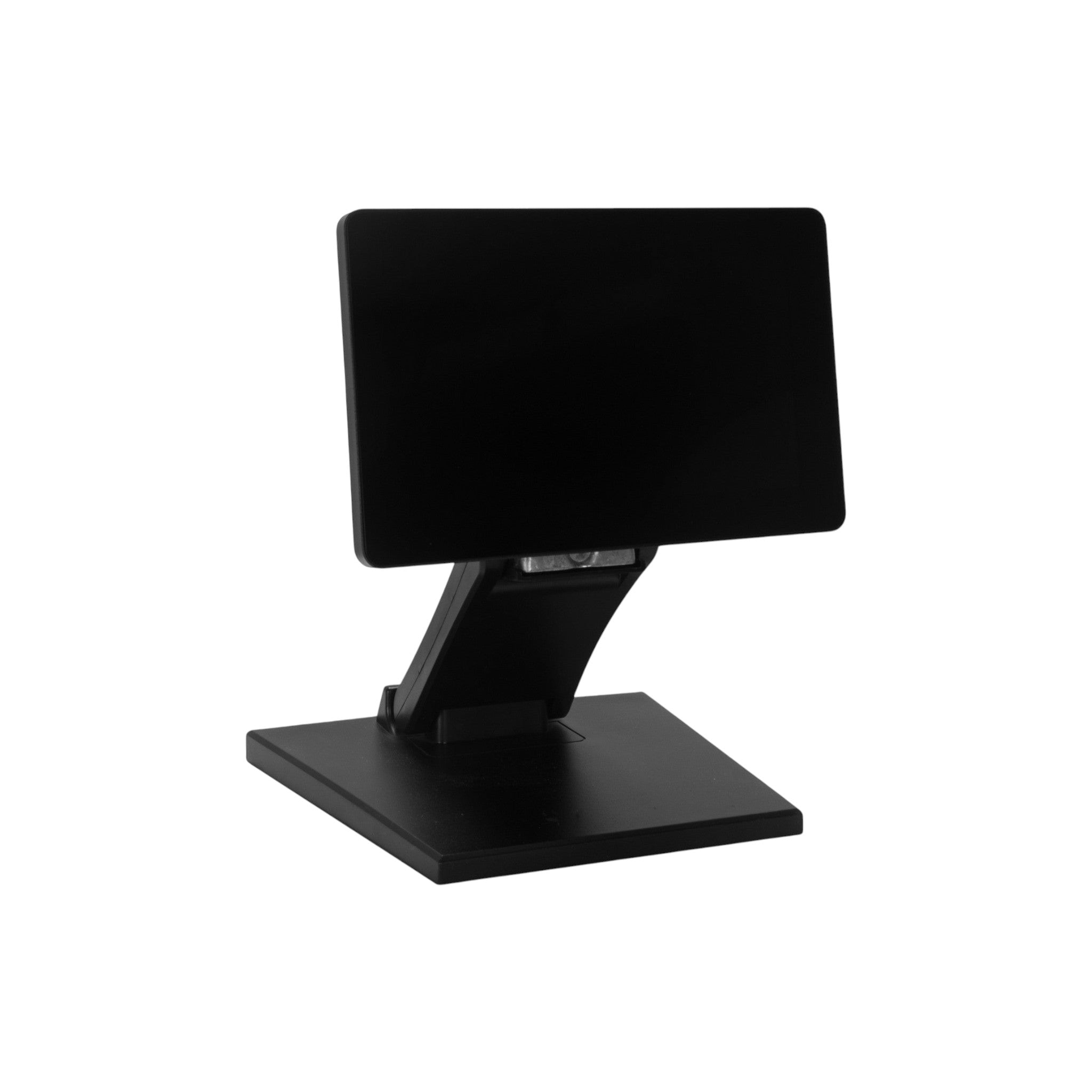

Touch Screen Guru 8" high-bright rugged touch monitor with adjustable black stand, ideal for industrial use.

Performance

A massive 1,200-nit backlight makes this HD display truly sunlight-readable, guaranteeing brilliant visibility in outdoor kiosks or high-ambient-light settings.

Optical bonding eliminates internal reflections, maximizing color accuracy and maintaining crisp 178-degree viewing angles from any position.

Achieves an industry-leading 5ms response time, allowing for rapid, lag-free interaction on fast-paced point-of-sale or control dashboards.

The sensitive PCAP touch layer captures fluid multi-touch gestures instantly, whether the user is bare-handed or using a capacitive stylus.

Features

Built with a TRU-Flat, zero-bezel design and an IP65-sealed front to repel water, grease, and debris in heavy-traffic public spaces.

Encased in a heavy-duty metal housing engineered to withstand physical impact and the rigors of 24/7 commercial operation.

Features universal USB HID-compliant plug-and-play architecture—simply connect via USB-C, HDMI, or DP with no drivers or calibration required.

Backed by a 50,000-hour MTBF and a 3-year commercial warranty to maximize uptime and protect your hardware investment.
